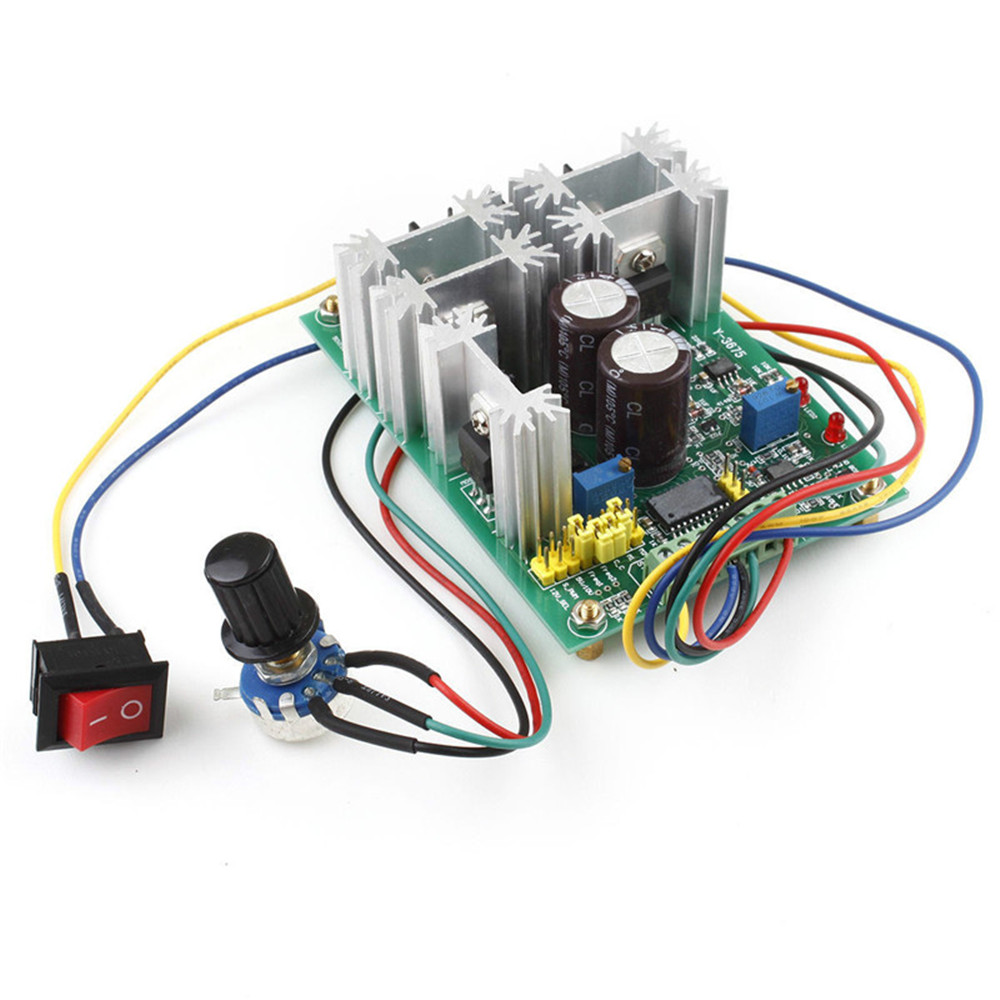

Contrôleurs PWM

10~60 V

VCC positive supply 10-60V, be sure to set before energizing voltage adaptation
GND Negative , if you want to reduce the external interference shielding box connected to terminals or here at the cathode connected to the power supply
M+ Motor positive
M- motor negative
Length: 9.5cm width: 7cm height: 3.5cm Length of line: 40cm
Control port :
- 5V: driver board internal 5V power supply, the output capacity of less than 100mA, with potentiometer mode is recommended only to use , do not drive other circuits
- PWM: external PWM control signal input level range ,3-20V , 2mA current requirements ;
- ADJ: external 0-5V or 0-10V control signal input
- GND: ground control signals , such as the shield shell is not allowed to pick pick here is also not allowed in this place other circuits connected GND,
- DOWN: control signal, the internal coupler control signal and GND effective turn ( optocoupler turns on, can also be used microcontroller , NPN switch control )
- UP: control signal, the internal coupler control signal and GND effective turn ( optocoupler turns on, can also be used microcontroller , NPN switch control )
- STOP: control signal, the internal coupler control signal and GND effective turn ( optocoupler turns on, can also be used microcontroller , NPN switch control )
