YAESU FT-3D(E)
YAESU FT-3D(E)
Supplied Accessories
- Antenna
- 7.2 V 2,200 mAh Lithium Ion Battery Pack (SBR-14LI)
- Battery Charger (SAD-25)
- Belt Clip (SHB-13)
- USB Cable
- Operating Manual
SPECIFICATIONS
- Frequency Ranges:
- A(Main) Band RX: 0.5 - 1.8MHz (AM Broadcast)
- 1.8 - 30MHz (SW Band)
- 30 - 76MHz (50MHz HAM)
- 76 - 108MHz (FM Broadcast)
- 108 - 137MHz (Air Band)
- 137 - 174MHz (144MHz HAM)
- 174 - 222MHz (VHF TV)
- 222 - 420MHz (GEN1)
- 420 - 470MHz (430MHz HAM)
- 470 - 800MHz (UHF Band)
- 800 - 999.90MHz (GEN2, USA Cellular Blocked)
- B(Sub) Band RX: 108 - 137MHz (Air Band)
- 137 - 174MHz (144MHz HAM)
- 174 - 222MHz (VHF)
- 222 - 420MHz (GEN1)
- 420 - 470MHz (430MHz HAM)
- 470 - 580MHz (UHF Band)
- TX: 144 - 148MHz, 430 - 450MHz
- Circuit Type: NFM/ AM:Double-Conversion Superheterodyne
- FM /AM Radio: Direct-Conversion
- Modulation Type: F1D, F2D, F3E, F7W
- RF Power Output: 5W/ 2.5W/ 1W/ 0.3W (@ Batteery pack or EXT DC)
- Memory Channels: 1256
- Waterproof Rating: IPX5
- Case Size(W x H x D): 2.44“x 3.94”x 1.28“ (62 x 100 x 32.5 mm)w/ SBR-14LI, w/o Knob & Antenna
- Weight: 9.95oz (282 g) w/ SBR-14LI and Antenna
FEATURES
- Compact Design and Reliable 5W RF Power Output (Selectable 5W/ 2.5W/ 1W/ 0.3W)
- C4FM Digital V/D Mode, Voice FR Mode, Data FR Mode and Conventional FM Mode
- 700 mW of audio power with C4FM clear and crisp audio quality
- Dual Band Simultaneous Receive (V+V/ U+U/ V+U/ U+V)
- Built-in Bluetooth Unit enables the easy hands-free operation (NEW!)
- Highly visible 320 x 240 dot matrix Full-Color TFT Touch Panel Display
- Band Scope Function enables monitoring up to 79 channels centered around the current VFO frequency with high-speed (NEW!)
- CAM (Club Channel Activity Monitor) function (NEW!)
- System Fusion II compatible such as AMS (Automatic Mode Select), DG-ID (Digital Group ID), and Smart Navigation functions
- WiRES-X Portable Digital Node compatible
- Built-in 66ch High-Sensitivity GPS Receiver
- 1200/9600bps APRS Data Communication
- Snapshot Feature
- Voice Recording function for the received and transmitting voice and audio
- Built-in On/Off Timer, Automatic Power Off (APO) and Time-out Timer (TOT)
- micro SD Card Slot (up to 32GB)
- IPX5 Rating Water Protection
DOCUMENTATION
SOFTWARES
FIRMWARES

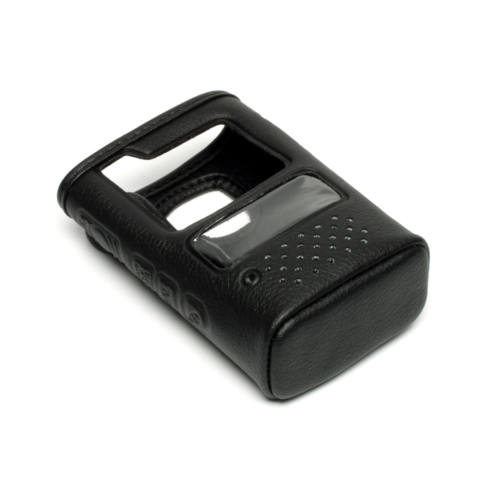

SOFT-CASE SHC-34

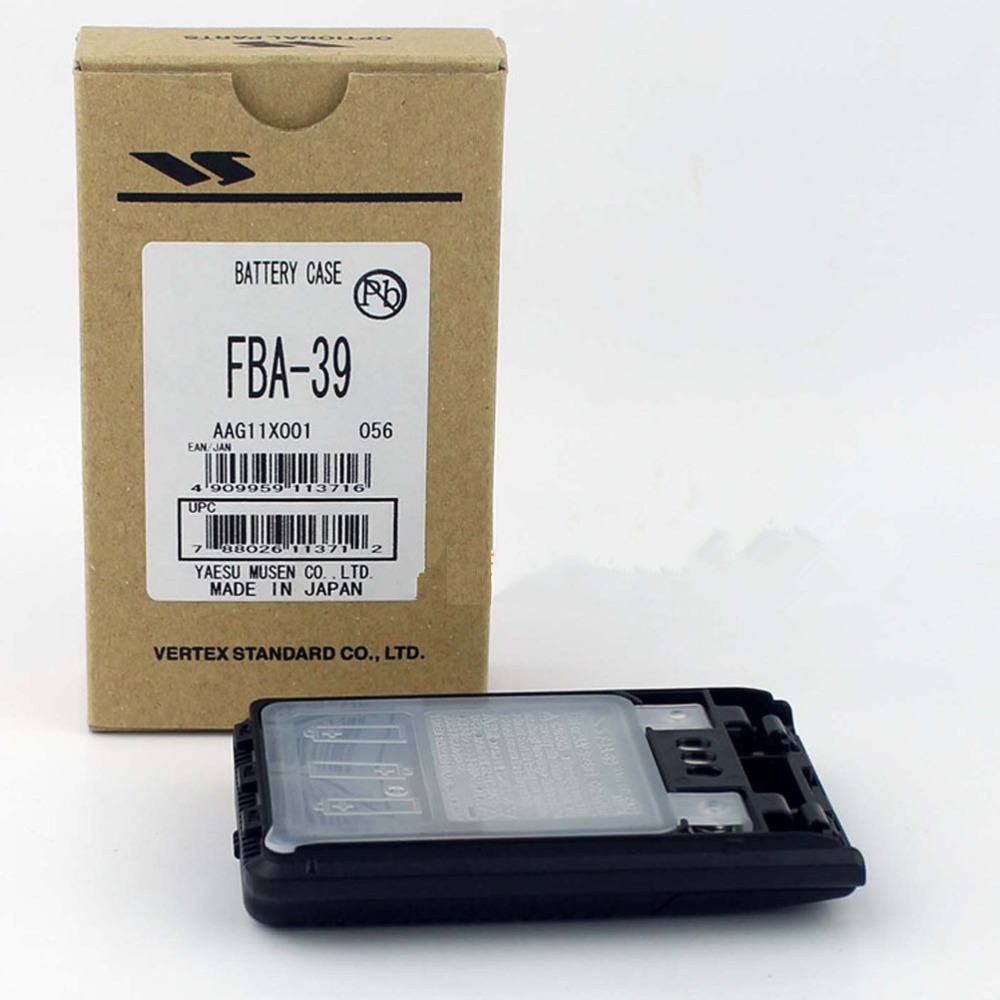

BATTERY-CASE FBA-39
