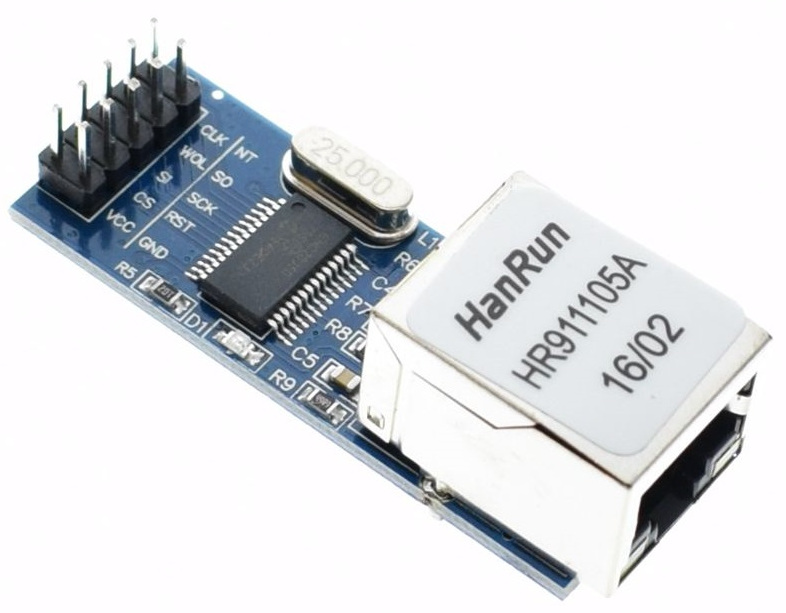

ENC28J60 based Cards / Modules / Shields
Libraries
UIPEthernet great for projects that require “print” to be fully implemented and need to be a drop-in replacement for the standard “Ethernet” library
ETHER_28j60 is great for its simplicity and small size, but comes with limitations
-

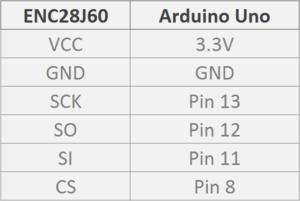

Wiring
Code
#include <EtherCard.h>
static byte mac[] = { 0x74, 0x69, 0x69, 0x2D, 0x30, 0x31 };
static byte ip[] = { 192, 168, 1, 10 };
byte Ethernet::buffer[500];
void setup () {
if (ether.begin(sizeof Ethernet::buffer, mac, 8) == 0)
Serial.println("Failed to access Ethernet controller");
if (!ether.staticSetup(ip))
Serial.println("Failed to set IP address");
}
void loop() {
ether.packetLoop(ether.packetReceive());
}
